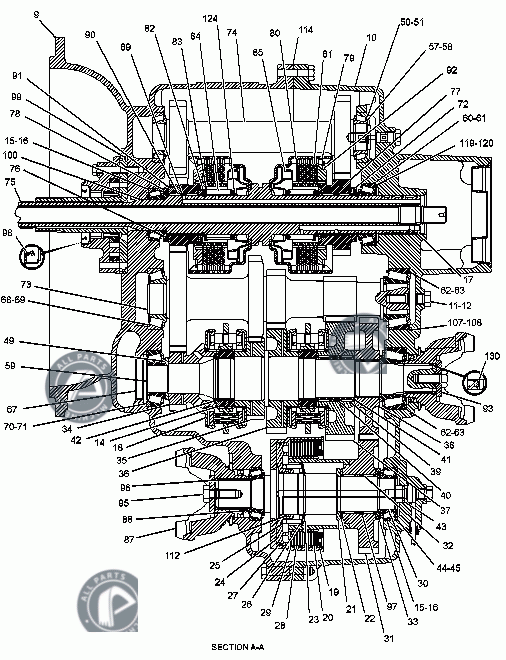

1920844-TRANSMISSION GROUP-DIRECT DRIVE -ALL WHEEL DRIVE

1920844-TRANSMISSION GROUP-DIRECT DRIVE -ALL WHEEL DRIVE

Brand	Caterpillar
Model	416D
Part Number	1920844
Description

List of Spare Parts
Part No.	Part Name
1749711	GASKET
1750054	SEAL-O-RING
9M1974	WASHER-HARD (8.8X16X2-MM THK)(HARD)
1223652	PLUG
1217405	VALVE GROUP-RELIEF (CLUTCH PRESSURE)
1217396	VALVE GROUP-RELIEF (TORQUE CONVERTER INLET)
8C5748	BOLT (M8X1.25X55-MM)(M8X1.50X50MM)
9P9150	WASHER (8.25X18X0.84-MM THK)
1920845	CASE-FRONT TRANSMISSION
1569275	CASE-REAR TRANSMISSION
9S4191	PLUG,MACHINE THREAD FUEL INJECTION PUMP
3J1907	SEAL VALVE ASSEMBLY TO SEAL- TUBE ASSEMBLY TO LOGIC VALVE
6V8335	BOLT-SELF-LOCKING (M10X1.5X40-MM)
7T3022	SLEEVE
1238906	CUP-TAPERED ROLLER
1238905	CUP-TAPERED ROLLER
9U8886	RING-SEAL
7T3021	SYNCHRONIZER GROUP (1ST & 2ND SPEED)
1613249	RING-RETAINING
8E5707	PLATE-END
1210697	WASHER-THRUST (45X65X5-MM THK)
1726050	BEARING-SPECIAL
0950927	RING-RETAINING
1210714	PISTON
1789566	SPRING-PISTON
1210885	RETAINER
6T9196	SEAL
2744553	DISC-FRICTION
6Y7957	DISC-FRICTION
1909767	SHAFT AS (OUTPUT)
1210904	GEAR AS (36-TEETH)
1238912	BEARING-ROLLER
1221877	WASHER-THRUST (40X65X4-MM THK)
2116758	GEAR (19-TEETH)
1211251	GEAR (28-TEETH)
1174650	GEAR (37-TEETH)
6T9160	GEAR (43-TEETH)
2591831	GEAR (37-TEETH)
6V8500	BEARING
7T3017	SPACER (52.5X59X9.6-MM THK)
7T3018	SLEEVE
6Y2326	RING
1221878	RING-SEAL
1221879	SPACER (58X67.5X2-MM THK)
1043288	SHIM (0.05-MM THK)
1212059	SHIM (0.08-MM THK)
1212060	SHIM (0.18-MM THK)
1212061	SHIM (0.6-MM THK)
6V7731	BOLT (M10X1.5X70-MM)
6Y2035	GASKET
7T3119	HOUSING (FILTER)
1212062	WASHER-THRUST (35X55X4-MM THK)
7T3034	SPACER (56.9X64.5X1.98-MM)
6T9144	SHIM (0.002MM THK) (.00508CM .002IN THK)
6T9147	SHIM .0076CM(.003IN.)THK
6T9146	SHIM (0.003MM THK) (.00762CM .003IN THK)
6T9145	SHIM (0.007MM THK) (.0177CM .007IN THK)
6T9143	SHIM (0.015MM THK) (.0381CM .015IN THK)
6T9142	SHIM (0.15MM THK) (.0381CM .015IN THK)
1H9721	PLUG-EXPANSION
6K0806	STRAP-CABLE -LINES FROM ROTATE VALVE
7T3111	COVER (NEOPRENE)
1209762	SEAL-O-RING
1217391	LEVER
0050469	CUP-ROLLER BEARING
0050471	CONE-BEARING
2116759	SHAFT (OUTPUT)(REAR)
1238910	CUP-TAPERED ROLLER
1238909	CONE-BEARING
7T2646	SPACER (66X79.5X2.02-MM THK)
6T9166	SHIM (0.051MM THK) (.0051CM .002IN THK)
6T9165	SHIM (0.076MM THK)(.0076CM .003IN THK)
6T9164	SHIM (0.178MM THK) (.0178CM .007IN THK)
6T9163	SHIM .0599CM(.024IN)THK.
7T3251	BREATHER (TRANSMISSION)
6V8210	BOLT (M8X1.25X16-MM)(LOCKING)
1069861	PLATE-COVER
7T3051	PLUG
8T1580	CUP (TAPERED ROLLER)
8T1581	CONE (TAPERED-ROLLER BEARING)
6Y2737	CUP-ROLLER BEARING
6Y2736	CONE-ROLLER BEARING
1212500	WASHER-THRUST (50X70X4-MM THK)
1212511	SHAFT
1212537	SHAFT-REVERSE
1212545	SHAFT AS-INPUT
1212603	GEAR (24-TEETH)
1212604	GEAR (27-TEETH)
1210694	WASHER-THRUST (40X70X4-MM THK)
1221882	PLATE-END
1221881	PLATE-CLUTCH
1221880	DISC
6V8757	RING-RETAINING
1788200	RETAINER-SPRING
1788134	SPRING
1788132	SEAL
1219875	BOLT (M10X1.5X55-MM)
1226787	YOKE AS
1221883	SPACER (38X45X5-MM THK)
1221885	SPACER (51X55X4-MM THK)
1238913	BEARING-ROLLER
1725317	BEARING-SPECIAL
1223649	RING-RETAINING
7T3195	WASHER (12.3X47X6.35-MM THK)
1232920	PLUG
6V8097	BOLT (M12X1.75X30-MM)
5P8066	SEAL-O-RING (ID=32.92mm)
1221884	SPACER (45X49X8-MM THK)
1217385	PUMP GROUP-TRANSMISSION (DIRECT DRIVE)
7X4741	SEAL (140MM ID)
1221886	RING-SEAL
0145645	BALL
6Y1341	SPRING
1217403	FORK-SHIFT (FIRST, SECOND)
1217389	ROD AS-GEARSHIFT (FIRST, SECOND)
1217390	ROD AS-GEARSHIFT (THIRD, FOURTH)
7T3249	SCREW (3/8-24X0.75-IN)
1238907	CONE-TAPERED ROLLER
1238908	CUP-TAPERED ROLLER
7T3109	PIN
1217404	FORK-SHIFT (THIRD, FOURTH)
1273017	SEAT AS (BALL)
6V5100	SEAL-O-RING (53.64MM ID)
3S2093	STRAP-CABLE-TO TIE HARNESSES TOGETHER
1U8846	SEALANT (FOR LOCATIONS A)
1232919	NUT (M11X1-THD)
1221876	TUBE
6Y1896	PLUG AS (TRANSMISSION DRAIN)
1232918	SLEEVE
1217398	SPACER (70X79.5X2-MM THK)
1217399	SHIM (0.05-MM THK)
1217400	SHIM (0.08-MM THK)
1217401	SHIM (0.18-MM THK)
1217402	SHIM (0.6-MM THK)
9W5460	RING
4F7952	PACKING,PREFORMED COVER PART OF KIT P/N 4J9280
7T2651	STRAINER (SUCTION)(TRANSMISSION CASE)
1788215	SLEEVE
9X6615	BOLT-SPECIAL (M5 X 0.8 X 30)
1214036	VALVE GROUP-SOLENOID -TRANSMISSION
2238181	VALVE GROUP-SOLENOID -TRANSMISSION
3G6927	ADAPTER
7T3253	DOWEL
2162267	SEAL-LIP TYPE (COUNTERSHAFT)
1226785	PLUG AS
	USE AS REQUIRED
	METRIC PART
	SEPARATE ILLUSTRATION
