| List of Spare Parts |
| Part No. |
Part Name |
| 2B0947 |
BOLT (1/2" x 2 1/4") ROPS MOUNTING BRACKET TO COVER ASSEMBLY |
| 9S4185 |
PLUG--TO SEAL HYDRAULIC PUMP TO SUMP OF LIMIT SYSTEM |
| 3K0360 |
SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN |
|
CAP (TAMPER RESISTANT)(END) |
| 7R3403 |
GASKET |
| 7X5468 |
BEARING AS-NEEDLE |
| 7X5489 |
Pin |
| 7X5513 |
Plate, motor valve |
|
KIT (CYLINDER BLOCK) |
| 7X5469 |
Ring, retaining |
| 7X5470 |
WASHER-SPECIAL (31.2X41.1X4.2-MM THK) |
| 7X5471 |
Spring, cylinder block |
| 7X5472 |
WASHER (31.2X40.3X2.7-MM THK) |
|
CYLINDER BLOCK |
| 7X5474 |
Pin, slipper hold down |
| 7X5473 |
Retainer |
| 7X5477 |
Guide, retainer |
| 1G5975 |
GUIDE-SLIPPER |
| 1G5974 |
PISTON |
| 6R2031 |
SHAFT |
| 7R3404 |
PLATE |
|
HOUSING |
| 1J6474 |
RING-RETAINING |
| 8H9789 |
BEARING-BRACKET ASSEMBLY TO HUB |
| 2H5549 |
RING (RETAINING) |
| 7X5433 |
SEAL-LIP TYPE |
|
NOT SERVICED SEPARATELY |

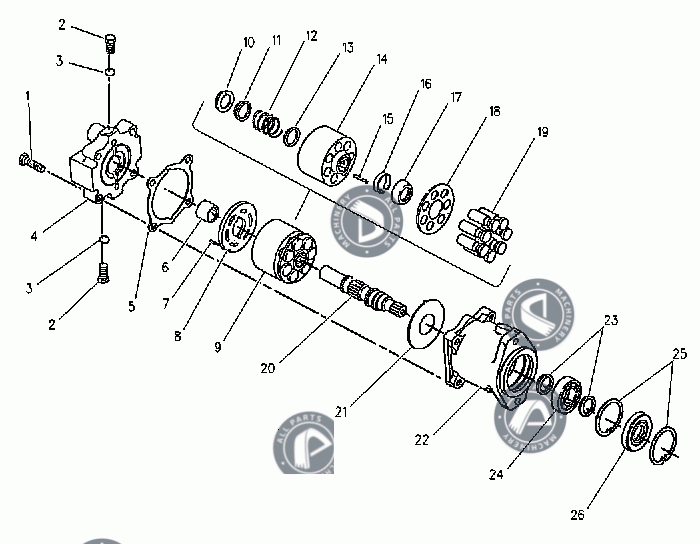

![[8I0843-MOTOR GROUP-PISTON ]](https://crm.partsconexion.co/storage/Catalogue/Caterpillar/887/907/part_1887907.gif)
