| List of Spare Parts |
| Part No. |
Part Name |
| 4I9524 |
BAND-MARKER (BROWN, L4) |
| 4I9527 |
BAND (MARKER) (GREEN, R3) |
| 4I9528 |
BAND (MARKER) (PURPLE, R4) |
| 7K1181 |
STRAP-PRESSURE & RETURN HOSES TO |
| 0875764 |
HOSE AS (NOM 06, L=1550mm) |
| 1646874 |
FITTING AS-ELBOW |
| 3J1907 |
SEAL VALVE ASSEMBLY TO SEAL- TUBE ASSEMBLY TO LOGIC VALVE |
| 0857356 |
90 degrees ELBOW |
| 2751712 |
HOSE AS |
| 3259143 |
HOSE AS |
| 1488336 |
ADAPTER (STRAIGHT) (-6 ORB X -6 ORFS) |
|
(EACH INCLUDES) |
| 6V8397 |
SEAL (LATER MACHINES AND FIELD INSTALLED) |
| 6V8636 |
ADAPTER (SEAL) (ORFS 11/16- 16; PORT 9/16-18) |
| 1488367 |
ELBOW GROUP (EACH INCLUDES) |
| 6V9850 |
ELBOW-90 DEGREE SWIVEL (11/16-16 THD) |
| 1488378 |
ELBOW, 90°,-6 ORB /-6 ORFS (90°) (-6 ORBX-6ORFS) |
| 6V8724 |
ELBOW-O-RING FACE SEAL (90 DEGREE-9/16-18 THD) |
|
REFER TO HYDRAULIC INFORMATION SYSTEM |

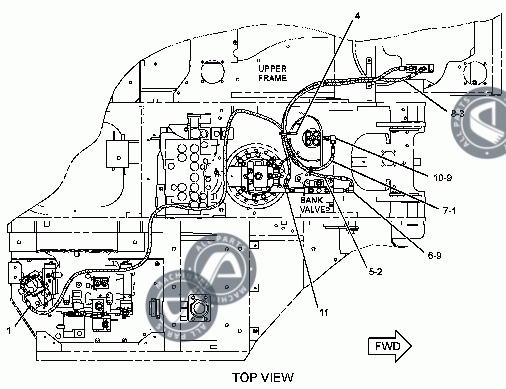

![[3075119-LINES GROUP-PILOT -BLADE, CONTROL VALVE, SUPPLY]](https://crm.partsconexion.co/storage/Catalogue/Caterpillar/765/763/part_2765763.gif)
