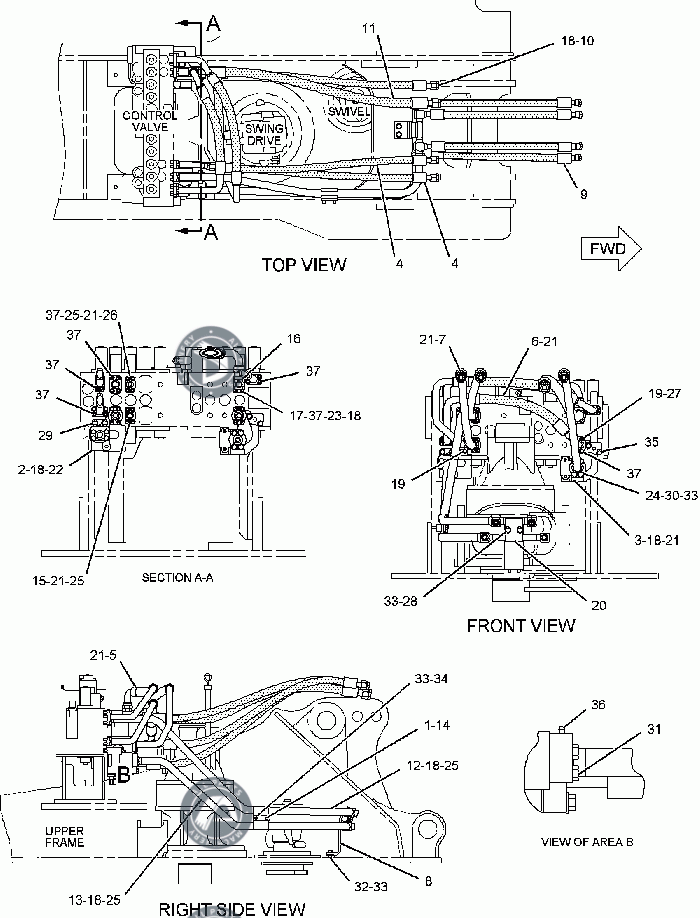

2085089-LINES GROUP-FRONT -BOOM, STICK

List of Spare Parts
Part No.	Part Name
1335828	SUPPORT AS
1588117	VALVE GROUP-LOAD CONTROL -BOOM LOAD CONTROL
1588160	VALVE GROUP-LOAD CONTROL -STICK CYL, DRIFT REDUCTION
1875954	HOSE AS
1940174	HOSE GROUP-HYDRAULIC -CONTROL VALVE, STICK
1940177	HOSE GROUP-HYDRAULIC -CONTROL VALVE, STICK
1940180	HOSE GROUP-HYDRAULIC -CONTROL VALVE, BOOM
1991707	SUPPORT AS
2076562	HOSE AS
2076651	HOSE AS
2076701	HOSE AS
2127368	TUBE AS
2127369	TUBE AS
1087550	CLAMP
1370856	TUBE AS
1488429	TEE AS-ORFS
5K9090	SEAL-TO HYDRAULIC COOLER INLET PORT
6V9840	TEE (SWIVEL)
7Y3731	FLANGE-SPECIAL
1P3703	SEAL - RECTANGULAR (31.86MM ID)
1991286	BOLT-SOCKET HEAD (M10X1.5X150-MM)
4I1674	CLIP
4J5267	PACKING,PREFORMED TUBE TO CYLINDER UOC:BSV,BSX
4J5268	SEAL--TO SEAL SLEEVE TO PUMP & BRAKE HOUSING
6V0400	FLANGE HALF (HYDRAULIC PORT)
6V9746	SEAL-O-RING
7Y3721	TUBE AS
8T4121	WASHER-HARD (11X21X2.5-MM THK)(M10X1.50X30MM)
8T4139	CAPSCREW (HEX HD) (M12 X 1.75 X 30L GR 10.9)
8T4172	BOLT (M10X1.50X80MM) (M10X1.50X80-MM)
8T4184	CAPSCREW (HEX HD) (M12 X 1.75 X 45L GR 10.9)
8T4186	BOLT-PLT (M10 X 1.5 X 40)
8T4192	CAPSCREW (HEX HD) (M12 X 1.75 X 25, GR10.9, Z)
8T4223	WASHER-HARD (13.5X25.5X3-MM THK)(BOLT TO SHIELD)
8T4910	BOLT-PLT (M12 X 1.75 X 60)
8T5005	BOLT (M10X1.50X70MM) (M10X1.50X70-MM)
9F2167	SCREW-PURGE (3/8-24X1.164-IN)
1017404	BOLT (SOCKET HEAD) (M10X1.5X30mm)
	REFER TO HYDRAULIC INFORMATION SYSTEM
	METRIC PART
	SEPARATE ILLUSTRATION
