2726955-PUMP GROUP-MAIN HYDRAULIC -DOUBLE

2726955-PUMP GROUP-MAIN HYDRAULIC -DOUBLE

Brand	Caterpillar
Model	320D L
Part Number	2726955
Description

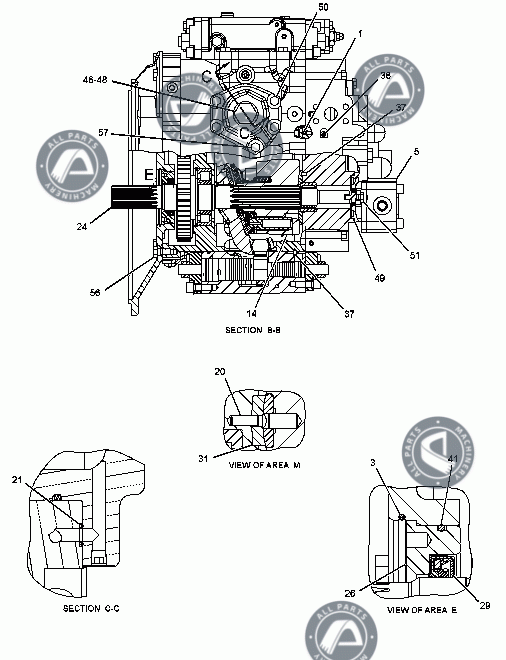

List of Spare Parts
Part No.	Part Name
4I1022	ORIFICE
7Y4215	SPACER
0963983	RING-RETAINING
1184057	SPRING
1262016	PUMP GROUP-GEAR (PILOT)
9T0835	RING-RETAINING
1297859	SET-BEARING
1297863	COVER
1297921	RING-RETAINING
1297927	BEARING
1297979	DOWEL
1505782	COVER
1733427	GUIDE-BALL
1733473	PLATE
1733496	BARREL AS
1733498	BARREL AS
1772470	COVER
1772471	COVER
1799763	FLANGE
1915709	PISTON AS
1920573	PIN-DOWEL
1899763	SEAL (13.6mm OD)
2003333	HEAD-PUMP
2003334	COVER
2254543	SHAFT-DRIVE
2254544	SHAFT-DRIVEN
1297854	CASE
1297857	GASKET
1297855	GASKET
1297925	SEAL-O-RING (ID=11.89mm)
2426801	SWASHPLATE AS
	(EACH INCLUDES)
0941875	PIN, ROLLER
1733428	BEARING-SLEEVE
2426803	PIN-DOWEL
2426804	BEARING
2478920	ORIFICE
2478782	BODY
2560093	HEAD GROUP-PUMP -DRIVE
2560096	HEAD GROUP-PUMP -DRIVEN
0941882	PLUG, TAPERED
0950946	RING (RETAINING)
0963944	SEAL-O-RING
2738314	SEAL-O-RING
1904896	PLUG
1931736	SEAL (85.6mm OD)
3K0360	SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN
7M8485	SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429
7X2557	BOLT (M16X2.0X140MM)
8J4645	PLUG (FRONT 5 STEM MAIN CONTROL VALVE)
2738315	SEAL (ID=84.40mm)
8T4136	CAPSCREW (HEX HD) (M10 X 1.50 X 25L GR 10.9)
8T4137	BOLT (M10X1.50X20MM)
8T4139	CAPSCREW (HEX HD) (M12 X 1.75 X 30L GR 10.9)
8T4140	BOLT-PLT (M16 X 2.0 X 60)
8T4175	BOLT (M16X2X90-MM)
8T4176	BOLT-PLT (M12 X 1.75 X 90)
8T4192	CAPSCREW (HEX HD) (M12 X 1.75 X 25, GR10.9, Z)
8T4196	CAPSCREW (HEX HD) (M10 X1.5 X 35, GR10.9, Z)
9S4185	PLUG--TO SEAL HYDRAULIC PUMP TO SUMP OF LIMIT SYSTEM

	AVAILABLE REPAIR KIT(S):
2502503	KIT-SEAL (PILOT GEAR PUMP)
	(INCLUDES 2 GASKETS, LIP SEAL, SEAL & RETAINING RING)
	KIT MARKED J SERVICES PART(S) MARKED J
	METRIC PART
	SEPARATE ILLUSTRATION
