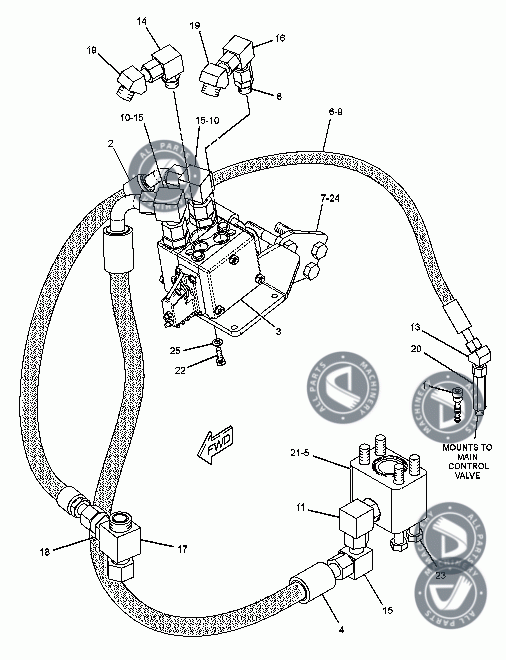

2254839-LINES GROUP-PILOT -DUPLICATED SIGNAL

2254839-LINES GROUP-PILOT -DUPLICATED SIGNAL

Brand	Caterpillar
Model	385C
Part Number	2254839
Description

List of Spare Parts
Part No.	Part Name
4T1860	VALVE GROUP-SHUTTLE -RIPPER LIFT-RIPPER TILT-BLADE TILT-BLADE LIFT
1537821	HOSE ASSEM.
1941804	VALVE GROUP-MEDIUM PRESSURE -MEDIUM PRESSURE
2125329	HOSE AS
2156948	FLANGE
2570141	HOSE AS
2668900	PLATE
1488315	CONNECTOR AS
2M9780	SEAL--TO CONNECTOR PUMP OUTLET
6V8642	CONNECTOR-SEAL
7J9108	SEAL-TO TRANSMISSION COOLER PORTS
1488336	ADAPTER (STRAIGHT) (-6 ORB X -6 ORFS)
3J1907	SEAL VALVE ASSEMBLY TO SEAL- TUBE ASSEMBLY TO LOGIC VALVE
6V8397	SEAL (LATER MACHINES AND FIELD INSTALLED)
6V8636	ADAPTER (SEAL) (ORFS 11/16- 16; PORT 9/16-18)
1488339	CONNECTOR AS.
	(EACH INCLUDES)
6V8716	CONNECTOR-SEAL (1- 5/16-12)
6V9746	SEAL-O-RING
7M8485	SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429
1488347	ELBOW (-12 ORB/ORFS)
3D2824	O-RING - FOR OIL DRAIN & LEVEL PLUG (ITEMS 3 & 7)
6V9007	ELBOW-O-RING FACE SEAL (90 DEGREE-1-1/16-12THD)
1488371	ELBOW, 45, -6 ORFS FM SWIVEL
8C8988	ELBOW-SWIVEL (45 DEGREE)
1488390	ELBOW GROUP
6V8626	ELBOW-0-RING FACE SEAL
1488392	ELBOW (-12 ORFS/-12 ORFS SWIVEL)
	(EACH INCLUDES)
6V9853	ELBOW-SWIVEL (1 3/16-12 THD)
1488393	ELBOW GROUP
6V9852	ELBOW-SWIVEL-ORFS (1-14 THD)
1488429	TEE AS-ORFS
5K9090	SEAL-TO HYDRAULIC COOLER INLET PORT
6V9840	TEE (SWIVEL)
1536236	REDUCER AS
6V8946	REDUCER ASSEM.
1536256	ELBOW AS
	(EACH INCLUDES)
8C7563	ELBOW
1645589	CONNECTOR AS
8C0597	CONNECTOR-O-RING
1P3706	SEAL 57.9MM(2.28IN.)I.D.
4M6425	B. 5/16 N.C. x 1"
7X2558	BOLT (M16X2X150-MM)
8T4175	BOLT (M16X2X90-MM)
8T4224	WASHER-TO ASSEMBLE VALVE AS AND PLATES
	REFER TO HYDRAULIC INFORMATION SYSTEM
	METRIC PART
	SEPARATE ILLUSTRATION
