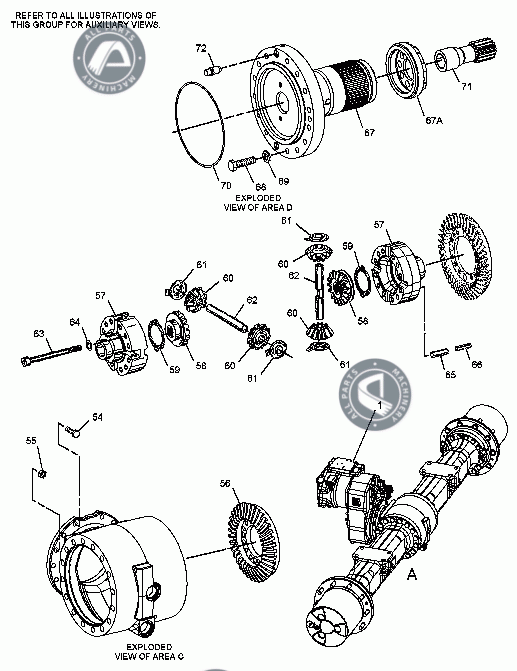

2374525-AXLE & TRANSMISSION AR

2374525-AXLE & TRANSMISSION AR

Brand	Caterpillar
Model	M316C
Part Number	2374525
Description

List of Spare Parts
Part No.	Part Name
2374526	TRANSMISSION GROUP -DIRECT DRIVE
2383313	HOUSING-AXLE
2383314	SHAFT-AXLE
2338738	HOUSING
0546514	SHIM (0.1-MM THK)
1217679	SHIM (0.15-MM THK)
0546513	SHIM (0.2-MM THK)
1217680	SHIM (0.25-MM THK)
0546512	SHIM (0.3-MM THK)
1287675	SHIM (0.35-MM THK)
7T0564	SHIM (0.4-MM THK)
1217677	SHIM (0.45-MM THK)
7T0563	SHIM (0.5-MM THK)
1217678	SHIM (0.55-MM THK)
7T0562	SHIM (0.6-MM THK)
1287676	SHIM (0.65-MM THK)
1287677	SHIM (0.7-MM THK)
1287680	SHIM (0.75-MM THK)
7T0561	SHIM (0.8-MM THK)
1287681	SHIM (0.85-MM THK)
1287683	SHIM (0.9-MM THK)
1287684	SHIM (0.95-MM THK)
7T0560	SHIM (1-MM THK)
1287685	SHIM (1.05-MM THK)
1287686	SHIM (1.1-MM THK)
1287687	SHIM (1.15-MM THK)
1287688	SHIM (1.25-MM THK)
1287689	SHIM (1.3-MM THK)
1287690	SHIM (1.35-MM THK)
7T0558	SHIM (1.4-MM THK)
1287691	SHIM (1.45-MM THK)
1287692	SHIM (1.5-MM THK)
1287693	SHIM (1.55-MM THK)
1287694	SHIM (1.6-MM THK)
1287695	SHIM (1.65-MM THK)
7T0552	SHIM (2-MM THK)
2028137	SHIM (1.47-MM THK)
2028138	SHIM (1.63-MM THK)
2028139	SHIM (1.75-MM THK)
2028140	SHIM (1.7-MM THK)
2028141	SHIM (1.8-MM THK)
2028142	SHIM (1.85-MM THK)
2028143	SHIM (1.9-MM THK)
2028144	SHIM (1.95-MM THK)
9R7003	BEARING-TAPERED ROLLER
6Y2942	BEARING-TAPERED ROLLER
6Y2943	CUP-BEARING (TAPERED ROLLER)
8U6079	SEAL-O-RING
2384666	BOLT (M18X12.5X65-MM)
5W5531	WASHER (19X30X3-MM THK)
2633629	PLUG-SPECIAL
2030215	SEAL-O-RING
2633630	PLUG AS-MAGNET (RIGHT AXLE HOUSING)
8T4183	BOLT (M12X1.75X40MM) (M12X1.75X40-MM)
9X0690	NUT
2338728	GEAR-CROWN
9R6991	CASE-DIFFERENTIAL
9R6964	GEAR-DIFFERENTIAL
6T5749	WASHER-THRUST
1287855	GEAR-PINION
9R6994	WASHER-THRUST
1199288	SHAFT
9R6818	BOLT (M12X1.5X125-MM)
9R6819	WASHER (13X21.9X3-MM THK)
8T2450	PIN-SPRING
9R6962	PIN-CLAMPING (SMALL)
2338739	HUB GROUP-WHEEL
	(EACH INCLUDES)
2430378	NUT
8T0088	BOLT (M16X2X65-MM)
8D5054	WASHER,FLAT ELECTRIC STARTING MOTOR GROUP
8U5927	SEAL-O-RING (205MM ID)
2338742	GEAR-SUN
5W5682	VALVE-BREATHER (AXLE)
2634057	DOWEL
2035417	SEAL-LIP TYPE
1218167	BEARING-ROLLER
2383298	SLEEVE-SPACER
2633700	HUB
1104745	SEAL-O-RING
2633701	GEAR-CARRIER
8U2359	SEAL-O-RING
8U2058	SEAL-O-RING
2633702	GEAR-INTERNAL
2633703	PISTON
8U2373	SEAL
2383303	RING (2-MM THK)
8U0754	SEAL
2383304	RING (2-MM THK)
8U3592	SPRING
2383305	SPRING
8T0275	BOLT (M6X1X50-MM)
8U3591	SPACER (6.5X15X7-MM THK)
2633704	DISC-CLUTCH (4.5-MM THK)
2383307	DISC-CLUTCH (2-MM THK)
2383308	DISC-CLUTCH (3-MM THK)
2383309	DISC-CLUTCH (2.5-MM THK)
1100165	WASHER-THRUST (1.5MM(.059IN)THK)
1100164	WASHER-THRUST (1.7MM(.067IN)THK)
1100163	WASHER-THRUST (2.0MM(.078IN)THK)
1100162	WASHER-THRUST (2.2MM(.087IN)THK)
1100161	WASHER-THRUST (2.5MM(.098IN)THK)
1100160	WASHER-THRUST (2.7MM(.106IN)THK)
1100159	WASHER-THRUST (3.0MM(.118IN)THK)
2383310	HOUSING (PINION)
2383311	GEAR-PLANETARY
2139783	BEARING-ROLLER
1908590	RING-SNAP
1908591	WASHER (64.5X72.1X2-MM THK)
1104737	RING-RETAINING
5W2177	BOLT-SOCKET HEAD (M12X1.75X20-MM)
9R3168	SCREW
2383312	STUD-WHEEL
	USE AS REQUIRED
	METRIC PART
	SEPARATE ILLUSTRATION
