2047741-AXLE GROUP-STEERING -WIDE

2047741-AXLE GROUP-STEERING -WIDE

Brand	Caterpillar
Model	M318C
Part Number	2047741
Description

List of Spare Parts
Part No.	Part Name
2035397	GEAR AS-PINION (43 TEETH)
9R6814	WASHER (88X104.6X1.5-MM THK)
9R6805	WASHER (88X104.6X0.9-MM THK)
9R6806	WASHER (88X104.6X0.95-MM THK)
9R6807	WASHER (88X104.6X1-MM THK)
9R6808	WASHER (88X104.6X1.05-MM THK)
9R6809	WASHER (88X104.6X1.1-MM THK)
9R6810	WASHER (88X104.6X1.15-MM THK)
9R6811	WASHER (88X104.6X1.2-MM THK)
9R6812	WASHER (88X104.6X1.25-MM THK)
9R6813	WASHER (88X104.6X1.3-MM THK)
9R6801	WASHER (88X104.6X0.7-MM THK)
9R6802	WASHER (88X104.6X0.75-MM THK)
9R6803	WASHER (88X104.6X0.8-MM THK)
9R6804	WASHER (88X104.6X0.85-MM THK)
7T9342	CONE-BEARING
9R6932	RING (11.30MM THK)
9R6933	RING (11.33-MM THK)
9R6934	RING (11.36-MM THK)
9R6935	RING (11.39-MM THK)
9R6936	RING (11.42-MM THK)
9R6937	RING (11.45-MM THK)
9R6938	RING (11.48-MM THK)
9R6939	RING (11.51-MM THK)
9R6940	RING (11.54-MM THK)
9R6941	RING (11.57-MM THK)
9R6942	RING (11.60MM THK)
9R6943	RING (11.63-MM THK)
9R6944	RING (11.66-MM THK)
9R6945	RING (11.69-MM THK)
9R6836	RING (11.72-MM THK)
9R6837	RING (11.75-MM THK)
9R6838	RING (11.78-MM THK)
9R6839	RING (11.81-MM THK)
9R6840	RING (11.84-MM THK)
9R6841	RING (11.87-MM THK)
9R6842	RING (11.90MM THK)
9R6843	RING (11.93-MM THK)
9R6844	RING (11.96-MM THK)
9R6845	RING (11.99-MM THK)
9R6846	RING (12.02-MM THK)
9R6847	RING (12.05-MM THK)
9R6848	RING (12.08-MM THK)
9R6849	RING (12.11-MM THK)
9R6850	RING (12.14-MM THK)
9R6924	RING (12.17-MM THK)
9R6925	RING (12.20MM THK)
9R6926	RING (12.23-MM THK)
9R6927	RING (12.26-MM THK)
9R6928	RING (12.29-MM THK)
9R6929	RING (12.32-MM THK)
9R6930	RING (12.35-MM THK)
9R6931	RING (12.38-MM THK)
8U5669	SPACER (11.27MM) (.4437IN) THK
8U5670	SPACER (11.24MM) (.4425IN) THK
8U5671	SPACER (11.21MM) (.4413IN) THK
8U5672	SPACER (11.18MM) (.4401IN) THK
8U5673	SPACER (11.15MM) (.4389IN) THK
1287637	RING (11.12-MM THK)
1287638	RING (11.09-MM THK)
1287639	RING (11.06-MM THK)
1287640	RING (11.03-MM THK)
1287641	RING (11-MM THK)
1287642	RING (10.97-MM THK)
1287643	RING (10.94-MM THK)
9R7002	BEARING-TAPERED ROLLER
2292712	SEAL-SHAFT
9R6985	WASHER (27.1X50X5-MM THK)
5W5352	NUT (M27X1.5-THD)(M27X1.5 THD)
5W5398	WASHER-RETAINING
5W5666	FLANGE
2292711	PLATE-DEFLECTOR
1217625	CASE
9R6964	GEAR-DIFFERENTIAL
6T5749	WASHER-THRUST
1287855	GEAR-PINION
9R6994	WASHER-THRUST
1199288	SHAFT
8T2323	BOLT-SOCKET HEAD (M12X1.5X120-MM)
9R6819	WASHER (13X21.9X3-MM THK)
8T2450	PIN-SPRING
9R6962	PIN-CLAMPING (SMALL)
0546514	SHIM (0.1-MM THK)
1217679	SHIM (0.15-MM THK)
0546513	SHIM (0.2-MM THK)
1217680	SHIM (0.25-MM THK)
0546512	SHIM (0.3-MM THK)
1287675	SHIM (0.35-MM THK)
7T0564	SHIM (0.4-MM THK)
1217677	SHIM (0.45-MM THK)
7T0563	SHIM (0.5-MM THK)
1217678	SHIM (0.55-MM THK)
7T0562	SHIM (0.6-MM THK)
1287676	SHIM (0.65-MM THK)
1287677	SHIM (0.7-MM THK)
1287680	SHIM (0.75-MM THK)
7T0561	SHIM (0.8-MM THK)
1287681	SHIM (0.85-MM THK)
1287683	SHIM (0.9-MM THK)
1287684	SHIM (0.95-MM THK)
7T0560	SHIM (1-MM THK)
1287685	SHIM (1.05-MM THK)
1287686	SHIM (1.1-MM THK)
1287687	SHIM (1.15-MM THK)
1287688	SHIM (1.25-MM THK)
1287689	SHIM (1.3-MM THK)
1287690	SHIM (1.35-MM THK)
7T0558	SHIM (1.4-MM THK)
1287691	SHIM (1.45-MM THK)
1287692	SHIM (1.5-MM THK)
1287693	SHIM (1.55-MM THK)
1287694	SHIM (1.6-MM THK)
1287695	SHIM (1.65-MM THK)
7T0552	SHIM (2-MM THK)
2028137	SHIM (1.47-MM THK)
2028138	SHIM (1.63-MM THK)
2028139	SHIM (1.75-MM THK)
2028140	SHIM (1.7-MM THK)
2028141	SHIM (1.8-MM THK)
2028142	SHIM (1.85-MM THK)
2028143	SHIM (1.9-MM THK)
2028144	SHIM (1.95-MM THK)
9R7003	BEARING-TAPERED ROLLER
5W2793	BEARING
5W5475	SEAL-O-RING
5W5627	BOLT (M18X2.5X60-MM)(M18X2.5X60MM)
5W5531	WASHER (19X30X3-MM THK)
6V5225	SCREWDRIVER
9X0798	PLUG
2030215	SEAL-O-RING
5W6076	BOLT
9R6948	CLIP
1754073	BUSHING-SLEEVE
7T9343	CUP-BEARING
1326519	HOUSING-AXLE-LH
1326520	HOUSING-AXLE-RH
2047842	SHAFT-AXLE
1217675	BUSHING
1326521	TIE ROD GROUP (LH)
1326522	TIE ROD GROUP (RH)
2035402	HOUSING GROUP-AXLE (LH)
8U2342	NUT
2035403	HOUSING GROUP-AXLE (RH)
8U7285	BEARING-ROLLER
1100858	CAP-SEALING
1104743	SEAL-O-RING
1217659	SHIM (0.6-MM THK)
1217661	SHIM (0.8-MM THK)
1217662	SHIM (1-MM THK)
1217663	SHIM (1.2-MM THK)
1217665	SHIM (1.6-MM THK)
1217667	SHIM (2-MM THK)
1100860	PIN-BEARING
8T4779	BOLT-PLT (M16 X 2.0 X 35)
1287867	FITTING-HYDRAULIC
2202593	BUSHING-SLEEVE
9R6996	SEAL
2035415	UNIVERSAL JOINT GROUP
5W5682	VALVE-BREATHER (AXLE)
1353439	SHIM (3-MM THK)
2035416	SHIM (2.5-MM THK)
1353441	SHIM (2-MM THK)
1353442	SHIM (1.5-MM THK)
1353443	TUBE
1353444	BOLT (M12X1.5X30-MM)
2035417	SEAL-LIP TYPE
8U2356	BEARING
8U2357	FLANGE
1104745	SEAL-O-RING
1351593	GEAR (81-TEETH)
5W6377	PLUG
8U2359	SEAL-O-RING
8U2360	RING
8U2361	RING
8U2365	BUSHING 26.2MM (1.032IN)
8U2366	BUSHING 26.2MM (1.032IN)
8U2367	BUSHING 26.4MM (1.039IN)
8U2368	BUSHING 26.6MM (1.047IN)
8U2369	BUSHING 26.8MM (1.055IN)
8U2370	BUSHING 27.0MM (1.063IN)
8U2371	BUSHING 27.2MM (1.071IN)
1351594	BUSHING (26.23-MM THK)
1351595	BUSHING (26.26-MM THK)
1351596	BUSHING (26.29-MM THK)
1351597	BUSHING (26.32-MM THK)
1351598	BUSHING (26.35-MM THK)
2413652	BUSHING (26.38-MM THK)
2413653	BUSHING (26.41-MM THK)
2413654	BUSHING (26.44-MM THK)
2413655	BUSHING (26.47-MM THK)
2413656	BUSHING (26.5-MM THK)
1351599	PISTON
8U2373	SEAL
8U2398	RING
8U2399	RING
8U3590	GASKET
8U3591	SPACER (6.5X15X7-MM THK)
8U3592	SPRING
1351600	RING
8T0275	BOLT (M6X1X50-MM)
8U3594	NUT
8U9508	DISC (2.5-MM THK)
8U9509	DISC (3-MM THK)
8U9507	DISC (2-MM THK)
1100842	DISC-FRICTION
8U2377	WASHER-THRUST
8U2378	RING-LOCKING
1351601	WASHER
8U4119	GEAR (48-TEETH)
8U2385	RING-RETAINING (5-MM THK)
8U9510	CARRIER-PLANETARY
9W4926	PLUG
6T6408	SEAL-O-RING
1931132	GEAR-PLANETARY
2139783	BEARING-ROLLER
1104751	WASHER
1908590	RING-SNAP
1104737	RING-RETAINING
1100165	WASHER-THRUST (1.5MM(.059IN)THK)
1100164	WASHER-THRUST (1.7MM(.067IN)THK)
1100163	WASHER-THRUST (2.0MM(.078IN)THK)
1100162	WASHER-THRUST (2.2MM(.087IN)THK)
1100161	WASHER-THRUST (2.5MM(.098IN)THK)
1100160	WASHER-THRUST (2.7MM(.106IN)THK)
1100159	WASHER-THRUST (3.0MM(.118IN)THK)
1094440	PLUG
1908676	SEAL-O-RING
1172987	BOLT-SOCKET HEAD (M12X1.75X115-MM)
8U2381	WASHER 1.5MM (.059IN) THK
8U2382	RING-RETAINING (1-MM THK)
8U4120	GEAR-SUN (15-TEETH)
5W2177	BOLT-SOCKET HEAD (M12X1.75X20-MM)
5W0964	BOLT (M22X1.5X92-MM)

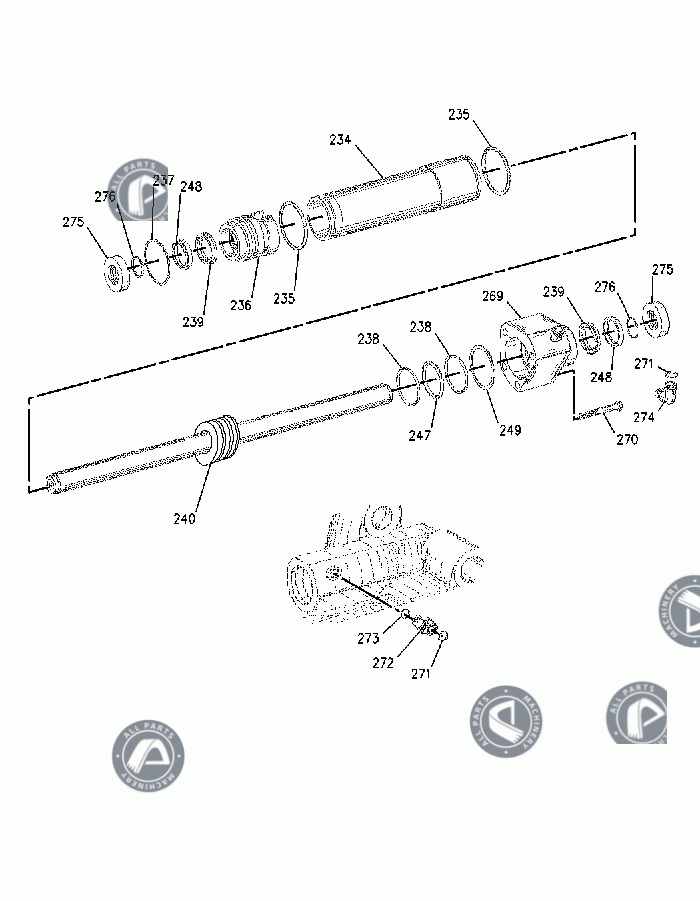

5W5696	CYLINDER (STEERING)
5W4819	SEAL-O-RING
5W6643	GUIDE
5W5485	SEAL-O-RING
5W5483	RING
5W6392	SEAL-O-RING
2160590	ROD AS
5W5646	SEAL
5W6391	SCRAPER
5W5547	WASHER (1.0MM) (.0394IN) THK
5W5548	WASHER (1.1MM) (.0433IN) THK
5W5549	WASHER (1.2MM) (.0472IN) THK
5W5550	WASHER (1.3MM) (.0512IN) THK
5W5551	WASHER (1.4MM) (.0551IN) THK
5W5552	WASHER (1.5MM) (.0591IN) THK
5W5553	WASHER (1.6MM) (.0630IN) THK
5W5554	WASHER (1.7MM) (.0669IN) THK
5W6400	WASHER (1.8MM) (.0709IN) THK
5W5555	WASHER (1.05MM) (.0413IN) THK
5W5556	WASHER (1.15MM) (.0453IN) THK
5W5557	WASHER (1.25MM) (.0492IN) THK
5W5558	WASHER (1.35MM) (.0531IN) THK
5W5559	WASHER (1.45MM) (.0571IN) THK
5W5560	WASHER (1.55MM) (.0610IN) THK
5W5561	WASHER (1.65MM) (.0650IN) THK
8U2752	DISC (0.7MM) (.0276IN) THK
8U2753	DISC (0.8MM) (.0315IN) THK
8U2754	DISC (0.9MM) (.0354IN) THK
5W6442	HOUSING
5W5632	BOLT (M14X2X100MM)
2030216	SEAL-O-RING
8U5818	FITTING
6T6305	SEAL-O-RING
1287901	ELBOW
1217686	RING
1217687	SEAL-O-RING
	USE AS REQUIRED
	CHANGE FROM PREVIOUS TYPE
	METRIC PART
	SEPARATE ILLUSTRATION
