1312905-AXLE AR-FRONT

1312905-AXLE AR-FRONT

Brand	Caterpillar
Model	M320
Part Number	1312905
Description

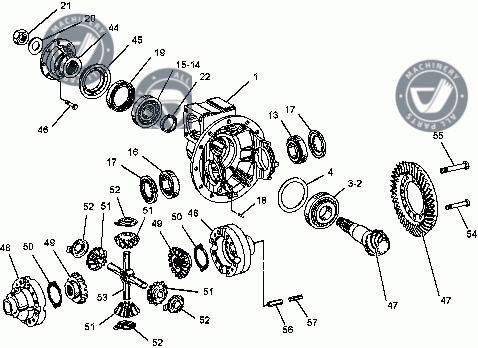

List of Spare Parts
Part No.	Part Name
8U2237	HOUSING-DIFFERENTIAL
2D9190	CUP OUTPUT SHAFT INNER CUP-OUTPUT SHAFT-INNER
2D9191	CONE-ROLLER BEARING
1100124	SHIM (2.0MM(.078IN)THK)
1100122	SHIM (1.8MM(.071IN)THK)
1100121	SHIM (1.5MM(.059IN)THK)
1100120	SHIM (1.2MM(.047IN)THK)
1299912	SHIM (1.9-MM THK)
1299913	SHIM (1.7-MM THK)
1299914	SHIM (1.6-MM THK)
1299915	SHIM (1.4-MM THK)
1299916	SHIM (1.3-MM THK)
1908561	SHIM (0.6-MM THK)
1908563	SHIM (0.7-MM THK)
1908565	SHIM (0.8-MM THK)
1908566	SHIM (0.9-MM THK)
1908567	SHIM (1-MM THK)
5W2074	SHIM (0.5-MM THK)
5W2073	SHIM (0.3-MM THK)
5W3644	SHIM (0.2-MM THK)
5W2072	SHIM (0.1-MM THK)
1931124	SHIM (0.65-MM THK)(0.65MM THK)
1931123	SHIM (0.75-MM THK)(0.75MM THK)
1754071	BUSHING-SLEEVE
8U3473	SEAL-O-RING
8U5818	FITTING
9X2609	SETSCREW-SOCKET (M8X1.25X8-MM)
1355026	RING
1069162	BOLT (M16X2X85-MM)
8U2422	RING
1355025	HOUSING-FRONT AXLE
8U2306	BEARING R.H.
3N4969	CONE-BEARING (TAPERED ROLLER)
3N6408	CUP-BEARING (TAPERED ROLLER)
1102463	BEARING-ROLLER
5W1383	NUT
9R3158	PIN
1104746	SEAL
8U2506	WASHER (30.5X55.5X6-MM THK)
1100848	NUT (M30X1.5-THD)
1100158	RING (16MM(.624IN)THK)
1100137	RING (17.4MM(.680IN)THK)
1100138	RING (17.3MM(.676IN)THK)
1100139	RING (17.2MM(.672IN)THK)
1100140	RING (17.1MM(.668IN)THK)
1100142	RING (17.04MM(.664IN)THK)
1100144	RING (16.98MM(.662IN)THK)
1100146	RING (16.92MM(.660IN)THK)
1100148	RING (16.86MM(.657IN)THK)
1100150	RING (16.8MM(.656IN)THK)
1100151	RING (16.7MM(.652IN)THK)
1100152	RING (16.6MM(.648IN)THK)
1100153	RING (16.5MM(.644IN)THK)
1100154	RING (16.4MM(.640IN)THK)
1100155	RING (16.3MM(.636IN)THK)
1100156	RING (16.2MM(.632IN)THK)
1100157	RING (16.1MM(.628IN)THK)
2029635	RING (16.56-MM THK)
2029636	RING (16.62-MM THK)
2029637	RING (16.64-MM THK)
2029643	RING (16.68-MM THK)
2029644	RING (16.72-MM THK)
2029669	RING (16.74-MM THK)
2029670	RING (16.76-MM THK)
2029671	RING (16.78-MM THK)
2029672	RING (16.82-MM THK)
2029673	RING (16.84-MM THK)
2029679	RING (16.88-MM THK)
2029680	RING (16.9-MM THK)
2029681	RING (16.94-MM THK)
1931454	RING (16.66-MM THK)(16.16MM THK)
1931455	RING (16.96-MM THK)(16.96MM THK)
1931458	RING (17-MM THK)(17MM THK)
1931460	RING (17.02-MM THK)(17.02MM THK)
1931461	RING (17.06-MM THK)(17.06MM THK)
1931462	RING (17.08-MM THK)(17.08MM THK)
1931463	RING (17.12-MM THK)(17.12MM THK)
1931464	RING (17.14-MM THK)(17.14MM THK)
1931465	RING (17.16-MM THK)(17.16MM THK)
1931469	RING (17.24-MM THK)(17.24MM THK)
1931470	RING (17.26-MM THK)(17.26MM THK)
1931471	RING (17.28-MM THK)(17.28MM THK)
8U2412	SHIM 1.8MM (.070IN) THK
8U2413	SHIM 1.7MM (.066IN) THK
8U2414	SHIM 1.6MM (.063IN) THK
8U2415	SHIM 1.5MM (.059IN) THK
8U2416	SHIM 1.4MM (.055IN) THK
8U2417	SHIM 1.3MM (.051IN) THK
8U2418	SHIM 1.2MM (.047IN) THK
8U2419	SHIM 1.1MM (.043IN) THK
8U2420	SHIM 1.0MM (.039IN) THK
1355022	SHIM (0.9-MM THK)
1355023	SHIM (0.8-MM THK)
1355024	SHIM (0.7-MM THK)
8U2411	SEAL
2229005	ROD AS
8U2404	RING
8U2403	RING
1355021	RING
1355020	HOUSING-FRONT AXLE
8U2401	SEAL-O-RING
8U2400	CYLINDER (STEERING)
5W1386	NUT (M22X1.5-THD)
5W0965	RING
5W1440	LOCKWASHER
5W0964	BOLT (M22X1.5X92-MM)
5W2177	BOLT-SOCKET HEAD (M12X1.75X20-MM)
1100165	WASHER-THRUST (1.5MM(.059IN)THK)
1100159	WASHER-THRUST (3.0MM(.118IN)THK)
1100160	WASHER-THRUST (2.7MM(.106IN)THK)
1100161	WASHER-THRUST (2.5MM(.098IN)THK)
1100162	WASHER-THRUST (2.2MM(.087IN)THK)
1100163	WASHER-THRUST (2.0MM(.078IN)THK)
1100164	WASHER-THRUST (1.7MM(.067IN)THK)
8T4241	RING (RETAINING)
5W3242	FLANGE
1100856	CAP-PROTECTION
5W2153	BOLT (M10X1X28-MM)
1347852	GEAR AS-DIFFERENTIAL
1908587	HOUSING (INCLUDES 2 PIECES)
8U2317	GEAR (16-TEETH)
8U2320	WASHER
2139759	GEAR-BEVEL
1100845	WASHER-THRUST
1102467	SHAFT-DIFFERENTIAL
1102460	BOLT (M12X1.5X95-MM)
1102461	BOLT (M16X1.5X100-MM)
1102457	PIN-SPRING
1102458	PIN-SPRING
8U3377	HOUSING-AXLE
1738253	SLEEVE
1094440	PLUG
1100847	PLUG-SCREW
1908676	SEAL-O-RING
1754070	BUSHING-SLEEVE
0546842	SEAL-LIP TYPE
9R3162	SLEEVE
8U3587	BOLT
9R3173	SCREW
9R6816	STUD
9R7000	NUT (M14X2-THD)
1348305	SHAFT GROUP-FRONT AXLE
9X0762	PLUG
8U3380	TIE ROD GROUP
8U3379	TIE ROD GROUP
1353428	HOUSING GROUP-AXLE -LH
1353429	HOUSING GROUP-AXLE -RH
1908590	RING-SNAP
5W0961	COVER
5W1833	CAP
5W1855	WASHER-SEAL
8U2351	TRUNNION
8U2345	SHIM 0.6MM (.023IN) THK
1353430	SHIM (0.8-MM THK)
8U2346	SHIM 1.0MM (.039IN) THK
8U2347	SHIM 1.4MM (.055IN) THK
8U2348	SHIM 1.6MM (.063IN) THK
8U2349	SHIM 1.8MM (.070IN) THK
8U2350	SHIM 2.0MM (.078IN) THK
1353431	SHIM (0.9-MM THK)
1353432	SHIM (1.1-MM THK)
1353433	SHIM (1.2-MM THK)
1353434	SHIM (1.3-MM THK)
1353435	SHIM (1.5-MM THK)
1908591	WASHER (64.5X72.1X2-MM THK)
2139783	BEARING-ROLLER
1931132	GEAR-PLANETARY
6T6408	SEAL-O-RING
9W4926	PLUG
8U9511	CARRIER-PLANETARY
8U2385	RING-RETAINING (5-MM THK)
8U4119	GEAR (48-TEETH)
8U4120	GEAR-SUN (15-TEETH)
8U2382	RING-RETAINING (1-MM THK)
8U2381	WASHER 1.5MM (.059IN) THK
1353436	BEARING
1353437	SEAL-O-RING
1359422	BOLT (M18X2.5X50-MM)
1359421	BOLT (M18X2.5X45-MM)
9R3171	FITTING
1100879	VALVE-VENT
1353438	FITTING
1351599	PISTON
1353439	SHIM (3-MM THK)
1353441	SHIM (2-MM THK)
5C8815	WASHER (13X20X2.5-MM THK)
1353442	SHIM (1.5-MM THK)
1172987	BOLT-SOCKET HEAD (M12X1.75X115-MM)
1351601	WASHER
8U2378	RING-LOCKING
1353443	TUBE
1353444	BOLT (M12X1.5X30-MM)
2035417	SEAL-LIP TYPE
8U2356	BEARING
8U2357	FLANGE
1104745	SEAL-O-RING
8U2377	WASHER-THRUST
8U2359	SEAL-O-RING
8U2360	RING
8U2361	RING
1351593	GEAR (81-TEETH)
8U2365	BUSHING 26.2MM (1.032IN)
8U2366	BUSHING 26.2MM (1.032IN)
8U2367	BUSHING 26.4MM (1.039IN)
8U2368	BUSHING 26.6MM (1.047IN)
8U2369	BUSHING 26.8MM (1.055IN)
8U2370	BUSHING 27.0MM (1.063IN)
8U2371	BUSHING 27.2MM (1.071IN)
1351594	BUSHING (26.23-MM THK)
1351595	BUSHING (26.26-MM THK)
1351596	BUSHING (26.29-MM THK)
1351597	BUSHING (26.32-MM THK)
1351598	BUSHING (26.35-MM THK)
2413652	BUSHING (26.38-MM THK)
2413653	BUSHING (26.41-MM THK)
2413654	BUSHING (26.44-MM THK)
2413655	BUSHING (26.47-MM THK)
2413656	BUSHING (26.5-MM THK)
1100842	DISC-FRICTION
8U9508	DISC (2.5-MM THK)
8U9509	DISC (3-MM THK)
8U9507	DISC (2-MM THK)
8U3594	NUT
7X2534	BOLT (50 mm LONG) (M6X1.0X50MM)
1351600	RING
8U3592	SPRING
8U3591	SPACER (6.5X15X7-MM THK)
8U3590	GASKET
8U2399	RING
8U2398	RING
8U2373	SEAL
	USE AS REQUIRED
	CHANGE FROM PREVIOUS TYPE
	METRIC PART
	SEPARATE ILLUSTRATION
