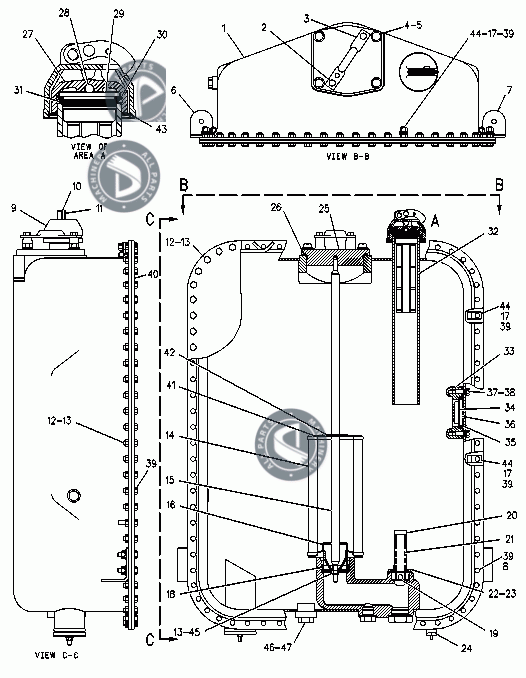

6E2815-TANK & FILTER GROUP-HYDRAULIC

6E2815-TANK & FILTER GROUP-HYDRAULIC

Brand	Caterpillar
Model	14H NA
Part Number	6E2815
Description

List of Spare Parts
Part No.	Part Name
9T7983	TANK AS
7J5544	FITTING (3/4X16-THD)
0S0509	BOLT (3/4") FILLER TUBE ASSEMBLY TO TRANSFER DRIVE CASE
9J1991	HANDLE
7B3235	BOLT,MACHINE GRAB IRON MOUNTING APPLICABLE W/O ROPS
5P8245	WASHER-HARD (13.5X25.5X3-MM THK)(TURBOCHARGER BLANKING PLATE)
8X5734	PLATE
8X5735	PLATE
6V5839	WASHER-HARD-ALT STRAP TO FAN DRIVE BELT
5D1911	COVER-HYDRAULIC CAP
9M7394	LEVER
1L5072	DOWEL (Part of 8S1499 Assem.)
0S1594	BOLT (1 IN. LONG 3/8 IN. DIA.) PLATE ASSEMBLY TO SUPPORT ASSEMBLY
2K4973	LOCKNUT INSIDE GUARD ASSEMBLY
1R0722	FILTER ELEMENT AS-OIL (STANDARD EFFICIENCY)(DISPOSABLE)
6E2266	ROD-THREADED (HYDRAULIC)
9J1979	RETAINER ASSEM.
8T4896	WASHER-HARD- LINE FROM PIPE AS. TO GEAR
7D1195	SEAL-O-RING (56.52MM ID)
9J1988	VALVE
9J1985	TUBE ASSEM.
1L4349	SPRING
3G3498	FLANGE
5K9107	BOLT 5T2711 BRACKET TO LH RADIATOR GUARD
2S5100	VALVE AS-NEEDLE (ENGINE OIL DRAIN)
6E2267	CAP (HYDRAULIC OIL FILTER ELEMENT)
6D9157	SEAL-O-RING
7H1447	CAP-FILLER (HYDRAULIC TANK)
8T2275	BALL
2D4202	PLATE
9H6454	GASKET
3G0361	GASKET
9J3047	STRAINER (HYDRAULIC TANK FILL)
3G2692	RETAINER
6E2169	PLATE-INDICATOR (HYDRAULIC OIL)
4J8251	GROMMET
4J8252	GAUGE-SIGHT (HYDRAULIC TANK OIL)
5D0353	CAPSCREW (3/8 - 16 NC X 1 GD8, HEX SELF-LOCKING)
5H6005	SEAL-O-RING (10.77MM ID)(SMALL)
0S1591	SCREW,CAP,HEXAGON BEARING RETAINER PART OF KIT P/N 1W7082
6E2269	COVER (HYDRAULIC TANK)
5P9119	GASKET-TAPE (ADHESIVE BACKED)
1419661	SPACER (20X128X6-MM THK)
0860507	PIN
2J7761	RING-RETAINING
4D7794	CLIP-- COMPRESSOR CLUTCH WIRE TO COMPRESSOR BODY
4M6921	WASHER-SPRING
9S4183	PLUG TO PLUG UNUSED VALVE GROUP PARTS
3D2824	O-RING - FOR OIL DRAIN & LEVEL PLUG (ITEMS 3 & 7)
	USE AS REQUIRED
	ORDER BY THE METER
