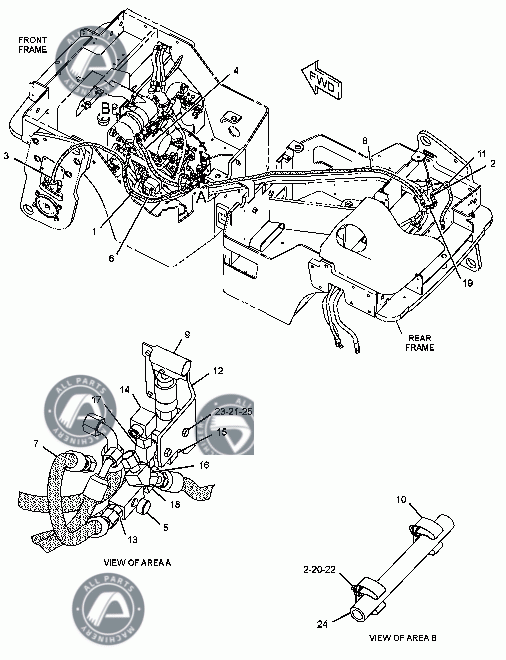

2648017-LINES GROUP-BRAKE

List of Spare Parts
Part No.	Part Name
3S2093	STRAP-CABLE-TO TIE HARNESSES TOGETHER
0814337	NUT
1087075	HOSE AS
1095188	HOSE AS
1153075	VALVE-NEEDLE
1367999	HOSE AS-ORFS
1436391	HOSE AS
1086615	HOSE ASSEMBLY
1563435	PUMP-HAND
1671192	CLIP
1432529	HOSE AS
2609089	BRACKET
1488336	ADAPTER (STRAIGHT) (-6 ORB X -6 ORFS)
3J1907	SEAL VALVE ASSEMBLY TO SEAL- TUBE ASSEMBLY TO LOGIC VALVE
6V8397	SEAL (LATER MACHINES AND FIELD INSTALLED)
6V8636	ADAPTER (SEAL) (ORFS 11/16- 16; PORT 9/16-18)
1488367	ELBOW GROUP (EACH INCLUDES)
6V9850	ELBOW-90 DEGREE SWIVEL (11/16-16 THD)
1488368	ELBOW GROUP
4J5477	SEAL - O - RING (11.23MM OD)
6V8627	ELBOW-90 DEGREE (9/16-18 THD)
1488371	ELBOW, 45, -6 ORFS FM SWIVEL
8C8988	ELBOW-SWIVEL (45 DEGREE)
1488439	TEE AS
6V8774	TEE
1504050	ELBOW AS
8T0788	ELBOW-90 DEGREE
1645570	CONNECTOR AS
6V8730	UNION-O-RING (11/16-16 THD)
4B4274	WASHER (REQUIRED ONLY WHEN BOSCH ALTERNATOR IS FITTED)
5C2890	NUT (M6X1-THD)(AIR INLET HEATER)
7I2272	BOLT (M5X0.8X12-MM)
7X2534	BOLT (50 mm LONG) (M6X1.0X50MM)
8Y1009	PIPE
9X8256	WASHER (6.6X12X2-MM THK)
7K1181	STRAP-PRESSURE & RETURN HOSES TO
	CHANGE FROM PREVIOUS TYPE
	REFER TO HYDRAULIC INFORMATION SYSTEM
	METRIC PART
