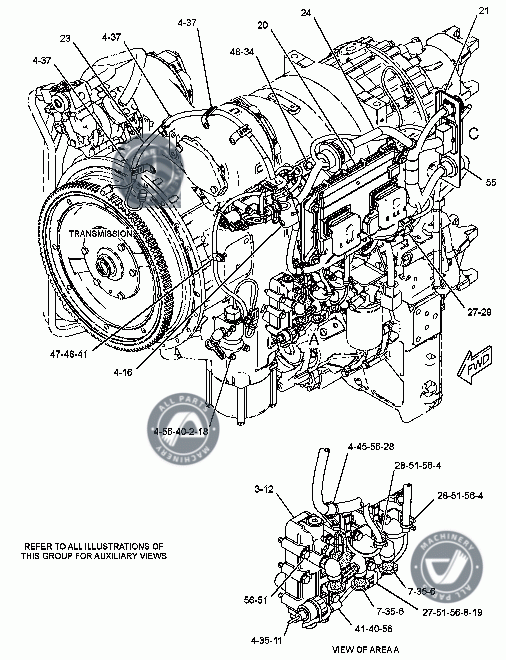

2860444-CONTROL GROUP-TRANSMISSION HYD -6-SPEED

2860444-CONTROL GROUP-TRANSMISSION HYD -6-SPEED

Brand	Caterpillar
Model	TH31-E61
Part Number	2860444
Description

List of Spare Parts
Part No.	Part Name
1V6341	SEAL
2H6184	SEAL-O-RING (ID=78.97mm)
2P1692	SEAL (ID=133.02mm)
3S2093	STRAP-CABLE-TO TIE HARNESSES TOGETHER
6I1418	SPACER (8.2X12.7X28.7-MM THK)
6V0484	ADAPTER-O-RING
6V0852	CAP-DUST (FUEL SUPPLY TEE CONNECTION)
8S0768	PACKING,PREFORMED COVER PART OF KIT P/N 5R1425 PART OF KIT P/N 8s7057
8T7000	SEAL
1249401	CLIP
1342252	SENSOR GROUP-TEMPERATURE -TRANSMISSION OIL-XMSN, TORQUE CONVERTER
1727970	VALVE GROUP-RELIEF -TRANSMISSION HYDRAULIC CONTROL
1803178	VALVE GROUP-RELIEF (TORQUE CONVERTER INLET)
1839358	PLATE
1895746	SENSOR GROUP-SPEED -LOW OUTPUT-ENGINE TIMING-TRANSMISSION
1905450	BRACKET
1918305	SENSOR GROUP-SPEED (SECONDARY, TIMING, CAMSHAFT)
	(EACH INCLUDES)
1330261	BRACKET
1376645	PAD (CONNECTOR)
2096632	VALVE GROUP-BYPASS -TRANSMISSION OIL FILTER
2447772	VALVE GROUP-MODULATING -TRANSMISSION CLUTCH, ECPC
3045687	CONTROL GROUP-UNPROGRAMMED (TRANSMISSION)
2830159	BRACKET AS
8T3612	NUT-WELD (M8X1.25-THD)
2830165	BRACKET AS
2862534	HARNESS AS-TRANSMISSION (COMMUNICATION)
7G7917	PLUG-SEAL
8N1513	RECEPTACLE AS-CONNECTOR (37-PIN)
8N1522	NUT (2-1/4-16-THD)
8N1521	ENDBELL AS-CONNECTION
8N1523	LOCKWASHER-TOOTH
1863736	SOCKET-CONNECTOR (16-GA TO 18-GA)
9X6772	STRAP-CABLE
9X6856	PIN-CONNECTOR (16-GA TO 18-GA)
1148843	SLEEVE-PLASTIC (32-MM DIA)(240-CM)
1193662	TUBE-HEAT SHRINK (10.85-MM DIA)(299-CM)
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(950-CM)
1552260	KIT-CONNECTING PLUG (3-PIN)(ENGINE SENSOR WIRING HARNESS)
1552270	KIT-CONNECTING PLUG (2-PIN)(ENGINE SENSOR WIRING HARNESS)
	(EACH PLUG KIT INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL)
1945226	HARNESS AS-SENSOR (16-18 GA WIRE)(ENGINE OIL TEMPERATURE)
	-OR-
1945227	HARNESS AS-SENSOR (14-GA WIRE)(ENGINE OIL TEMPERATURE)
3049016	HARNESS AS-TRANSMISSION
5P6001	TUBE-HEAT SHRINK (4.75-MM DIA)(0.8-M)
8N1514	PLUG AS-CONNECTOR (37-PIN)
8N1534	RECEPTACLE AS-CONNECTOR (20-PIN)
8N1536	NUT (1-5/8-18-THD)
8N1535	ENDBELL ASSEM.
8N1537	LOCKWASHER VE CONNECTOR
1863735	PIN-CONNECTOR (16-GA TO 18-GA)
8T8737	PLUG-SEAL (40 PIN CONNECTOR)
9W1951	RECEPTACLE-CONNECTOR (9-PIN)
9X6857	SOCKET (USE WITH PAYLOAD MONITOR)
9X7148	RECEPTACLE AS-CONNECTOR (40-PIN)
1148845	SLEEVE-PLASTIC (80-MM DIA)(60-CM)
1257876	TUBE-HEAT SHRINK (17.78-MM DIA)(140-CM)
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)(40 PIN CONNECTOR)
	-OR-
1261768	SOCKET-CONNECTOR (14-GA)
1261774	COVER-CONNECTOR (WIRE ROUTER)
9X3401	PIN-CONNECTOR (16-GA TO 18-GA)(THROTTLE POSITION SENSOR)
	-OR-
1261767	PIN-CONNECTOR (14-GA TO 16-GA)(14-GA WIRE)
1471445	PLUG AS-CONNECTOR (70-PIN)
1599322	SEAL (70mm OD)
1471446	PLUG AS-CONNECTOR (70-PIN)
0965962	WASHER (HARD) (3.4X7X0.8MM THK)
1171385	SEAL-O-RING (13.94MM ID)
1305300	CLIP (TAB)
1325789	CLIP (LADDER)
1330970	RECEPTACLE AS (TEE)
1422928	LOCKNUT (4-40-THD)
2001131	SCREW-TRUSS HEAD (M4X0.7X20-MM)
2046102	WASHER-HARD (4.45X9.52X1-MM THK)
3E4352	WASHER-HARD (8.8X20.5X2.5-MM THK)
3E4353	WASHER-HARD (11X25X3-MM THK)
3J1907	SEAL VALVE ASSEMBLY TO SEAL- TUBE ASSEMBLY TO LOGIC VALVE
4B1226	SCREW-MACHINE (10-24X6.35-MM)
4P7429	CLIP (26.5MM ID) (26.5 MM ID)
4P7581	CLIP (FOR USE WITH 7.9MM WIDE TIE WRAP)
4S9191	WASHER TO MAINSHAFT LUBE CAP
5P8347	BOLT (M8X1.25X70-MM)
5P9085	CLIP (7.94MM ID)
5S4245	SCREW-MACHINE (4-40X0.5-IN)
6V3940	BOLT (M8X1.25X25MM) (M8X1.25X25-MM)
6V4248	BOLT (M10) (REAR PUMP TO CENTER PUMP)
6V5215	BOLT (M8X1.25X16-MM)
6V5217	BOLT (M8X1.25X20-MM)(AT LOCATION Y)
6V5839	WASHER-HARD-ALT STRAP TO FAN DRIVE BELT
6V6317	BOLT (M10X1.50X20MM)
6V8455	BOLT (M10X1.5X16-MM)
8C6354	CAP-RECEPTACLE
8T0100	BOLT (M8X1.25X60MM) (M8X1.25X60-MM)
8T2659	LOCKNUT (M4X0.7-THD)
8T6912	BOLT-PLT (M8 X 1.25 X 50)
8T9655	MOUNT (ISOLATION)
9G4360	CAP-CONNECTOR
9M1974	WASHER-HARD (8.8X16X2-MM THK)(HARD)
9N0869	WASHER-HARD (8.8X25.5X2-MM THK)
9X4609	O-RING (FOR OIL DRAIN & LEVEL PLUG/SIGHT GAUGE)
9X8268	WASHER (17.5X30X3.5-MM THK)
9X7147	PLUG AS-CONNECTOR (40-PIN)
3E4367	RING-RETAINING
3E8557	BOLT (M5X0.8X39.37-MM)
9X3490	SEAL-CONNECTOR (40-PIN)
	USE AS REQUIRED
	ORDER BY THE METER
	ORDER BY THE CENTIMETER
	METRIC PART
	REMFG PART MAY BE AVAILABLE
	SEPARATE ILLUSTRATION
