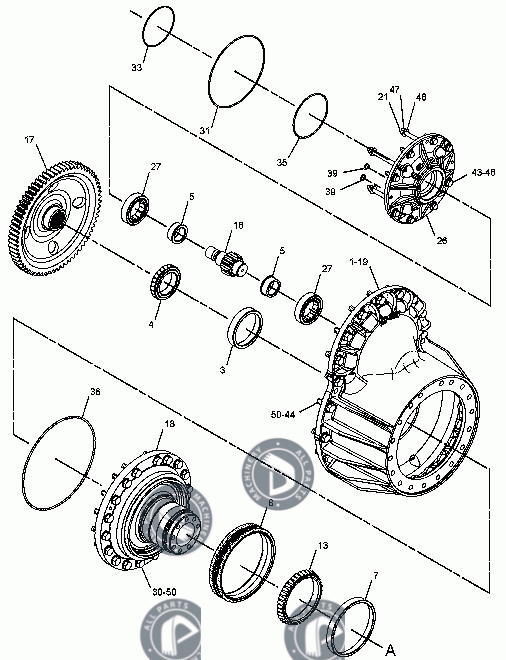

1139768-DRIVE GROUP-HYDROSTATIC

1139768-DRIVE GROUP-HYDROSTATIC

Brand	Caterpillar
Model	D3C III
Part Number	1139768
Description

List of Spare Parts
Part No.	Part Name
6V6640	SEALANT (USE AS REQUIRED)
1H4493	CONE-ROLLER BEARING
2H6489	RACE-BEARING-OUTER
2H6490	RACE AND ROLLER ASSEMBLY, INCLUDING:-
3B3967	RACE-ROLLER BEARING (INNER)
5P5354	CUP-BEARING (TAPERED ROLLER)
6V0330	CUP-BEARING (TAPERED ROLLER)
6Y0859	SEAL GROUP-DUO-CONE
	(EACH INCLUDES)
1M9011	RING-SEALING
7G4757	GEAR-RING (70-TEETH)
7G4758	GEAR-PLANETARY (26-TEETH)
8G3967	RING-RETAINING
8G3969	COVER
8T0072	CONE-ROLLER BEARING
9W9265	BOLT (1/2-20-NF)
1060704	HUB-RING GEAR
1096933	GEAR-PINION (21-TEETH)
1096934	GEAR-SPUR (68-TEETH)
1128977	SPINDLE
1128981	CASE-FINAL DRIVE
1137228	HUB
1138215	STUD-TAPERLOCK
1139769	RETAINER
1139773	SHAFT-SUN GEAR (34-TEETH)
1139775	SHAFT
1140360	DOWEL
1143359	CAGE-BEARING
1143391	BEARING
1143585	CARRIER AS
	(EACH INCLUDES)
8T4140	BOLT-PLT (M16 X 2.0 X 60)
9X8257	WASHER-PIPE AS TO MAIN PUMP SUCTION PORT
1907396	SEGMENT-SPROCKET
0990169	BOLT
2D9572	SEAL-O-RING (DRIVE MOTOR MOUNT)
2H3934	SEAL TRANSFER PUMP TO PLATE
2P1692	SEAL (ID=133.02mm)
3K0360	SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN
5H3252	SEAL 5.73 in. (14.55 cm)inside dia.
5H4082	SEAL-O-RING (310.13MM ID)
5M7329	SEAL-O-RING (411.48MM ID)
7M8485	SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429
8F3469	PACKING,PREFORMED UOC:BSV,BSX
8T4121	WASHER-HARD (11X21X2.5-MM THK)(M10X1.50X30MM)
8T4136	CAPSCREW (HEX HD) (M10 X 1.50 X 25L GR 10.9)
8T4179	BOLT (M12X1.75X20MM)(TO TURBOCHARDER-MOUNTING FACE)
8T4183	BOLT (M12X1.75X40MM) (M12X1.75X40-MM)
8T4193	BOLT-PLT (M16 X 2.0 X 50)
8T4194	BOLT (M12X1.75X50MM) (M12X1.75X50-MM)
8T4223	WASHER-HARD (13.5X25.5X3-MM THK)(BOLT TO SHIELD)
8T4224	WASHER-TO ASSEMBLE VALVE AS AND PLATES
9S8005	PLUG-O-RING (STRAIGHT THREAD O-RING)
9S9334	PLUG-O-RING (STRAIGHT THREAD O-RING)
	QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH AND RH SIDES

	USE AS REQUIRED
	METRIC PART
